🔧 Key Features

• Material: Constructed from insulating polyester or polycarbonate, providing excellent resistance to corrosion and environmental factors.​

• Design: Modular construction enables coupling on all sides, facilitating diverse configurations and assemblies.​

• Protection Ratings:

  • Ingress Protection: Rated IP66, ensuring protection against dust and powerful water jets.​

  • Impact Resistance: Conforms to IK09, indicating high resistance to mechanical impacts.​

• Mounting Options: Suitable for wall mounting; optional stainless steel wall mounting lugs are available for secure installation.​

• Cover Options: Available with transparent or opaque covers, allowing visibility of internal components or enhanced security, respectively.​

• Color: Typically finished in light grey (RAL 7035), blending well with various industrial environments.​

📐 Available Sizes

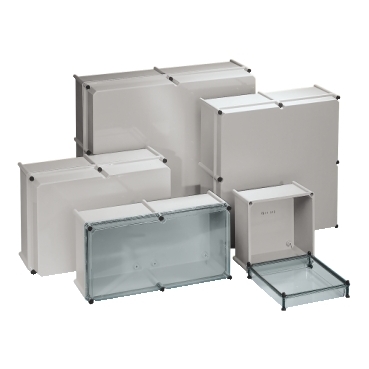

The PanelSeT PLS series comes in various sizes to accommodate different application needs. Examples include:​

• NSYPLS2754G: 270 mm (H) x 540 mm (W) x 180 mm (D)​

• NSYPLSP2736G: 270 mm (H) x 360 mm (W) x 180 mm (D)​

• NSYPLS5472AG: 540 mm (H) x 720 mm (W) x 230 mm (D)​

• NSYTPLS1827: 180 mm (H) x 270 mm (W) x 45 mm (D)​

These dimensions cater to a wide range of equipment sizes and installation requirements.​

🛠️ Applications

PanelSeT PLS enclosures are suitable for:​

• Electrical and electronic equipment housing​

• Control and distribution panels​

• Industrial automation systems​

• Environments requiring high ingress protection and insulation
