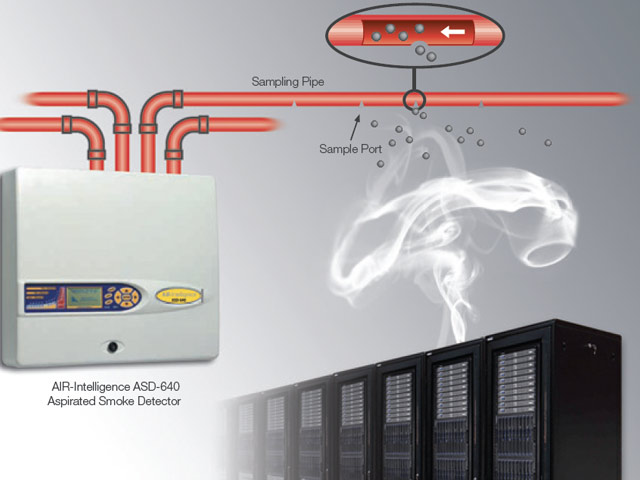

Aspirating Smoke Detection (ASD) is an advanced and highly sensitive method of smoke detection commonly used in areas where early warning is critical. Instead of waiting for smoke to rise to a detector, ASD systems actively draw in air through a network of small pipes and analyze it for traces of smoke particles.

🔍 How It Works:

1. Air Sampling: A fan continuously draws air from the protected area through a network of pipes.

2. Filter System: The air passes through a filter to remove dust and contaminants.

3. Laser Detection Chamber: The cleaned air enters a detection chamber where a laser or LED light source detects even minuscule amounts of smoke particles.

4. Alarm Levels: Based on how much smoke is detected, the system can trigger multiple alarm levels (e.g., Alert, Action, Fire 1, Fire 2).

✅ Key Features:

• Very Early Detection: Can detect smoke before it is visible, ideal for mission-critical areas.

• Custom Sensitivity Settings: Adjustable thresholds to reduce false alarms.

• Flexible Pipe Networks: Pipes can be installed above ceilings, under floors, in ducts, or around equipment.

• Monitoring Multiple Areas: One detector can cover a large area or multiple zones.

• Remote Monitoring: Often integrated with building management or fire control systems.

🔧 Common Applications:

• Data centers

• Server rooms

• Cleanrooms

• Telecom facilities

• Heritage buildings

• Warehouses with high ceilings

• Cold storage or harsh environments
